🔍 Grad-CAM++ in PyTorch — Visualizing What Your CNN Sees

Grad-CAM++ is a powerful tool for visualizing where your convolutional neural network is focusing when making a prediction. In this tutorial, we walk through a full implementation of Grad-CAM++ using PyTorch, explain each step, and visualize the result.

📦 What This Does

This repo provides a GradCAMPlusPlus class that: - Hooks into the CNN’s target convolutional layer. - Computes gradients and activations for the target class. - Generates class-specific heatmaps. - Visualizes attention over the original image.

🧠 What is Grad-CAM++?

Grad-CAM++ is an improvement over Grad-CAM. It: - Localizes features better (especially small objects). - Handles multiple relevant regions. - Computes per-pixel importance via higher-order gradients.

✅ Code Overview

📚 Required Imports

import torch
import torch.nn.functional as F
import numpy as np
import cv2
import matplotlib.pyplot as plt

🔧 GradCAMPlusPlus Class

class GradCAMPlusPlus:
    def __init__(self, model, target_layer):
        self.model = model.eval()
        self.target_layer = target_layer
        self.activations = None
        self.gradients = None
        self._register_hooks()

    def _register_hooks(self):
        def forward_hook(module, input, output):
            self.activations = output

        def backward_hook(module, grad_input, grad_output):
            self.gradients = grad_output[0]

        self.target_layer.register_forward_hook(forward_hook)
        self.target_layer.register_backward_hook(backward_hook)

    def generate_heatmap(self, input_tensor, class_idx=None):
        input_tensor = input_tensor.requires_grad_()
        output = self.model(input_tensor)

        if class_idx is None:
            class_idx = output.argmax().item()

        self.model.zero_grad()
        class_score = output[0, class_idx]
        class_score.backward(retain_graph=True)

        grads = self.gradients[0]              # (C, H, W)
        activations = self.activations[0]      # (C, H, W)
        grads_power_2 = grads ** 2
        grads_power_3 = grads ** 3

        sum_activations = torch.sum(activations, dim=(1, 2), keepdim=True)
        eps = 1e-8
        alpha_numer = grads_power_2
        alpha_denom = grads_power_2.mul(2) + sum_activations * grads_power_3
        alpha_denom = torch.where(alpha_denom != 0.0, alpha_denom, torch.ones_like(alpha_denom) * eps)
        alphas = alpha_numer / alpha_denom
        weights = torch.sum(alphas * F.relu(grads), dim=(1, 2))  # (C,)

        # Weight the activations
        heatmap = torch.sum(weights[:, None, None] * activations, dim=0).cpu().detach().numpy()
        heatmap = np.maximum(heatmap, 0)
        heatmap = (heatmap - heatmap.min()) / (heatmap.max() - heatmap.min() + eps)

        return heatmap, class_idx


    def visualize(self, heatmap, original_image, class_idx, colormap=cv2.COLORMAP_JET):
        # Resize heatmap to match image size
        heatmap_resized = cv2.resize(heatmap, (original_image.shape[1], original_image.shape[0]))
        heatmap_colored = cv2.applyColorMap(np.uint8(255 * heatmap_resized), colormap)
        overlay = cv2.addWeighted(original_image, 0.5, heatmap_colored, 0.5, 0)

        # Plot
        plt.figure(figsize=(12, 4))
        plt.subplot(1, 3, 1)
        plt.imshow(original_image)
        plt.title("Original")

        plt.subplot(1, 3, 2)
        plt.imshow(heatmap_resized, cmap='jet')
        plt.title("Grad-CAM")

        plt.subplot(1, 3, 3)
        plt.imshow(overlay)
        plt.title(f"Overlay (Predicted Class: {class_idx})")
        plt.show()

🧪 Example Usage

gradcam_pp = GradCAMPlusPlus(model, target_layer=model.layer2[1].conv2)
heatmap, class_idx = gradcam_pp.generate_heatmap(input_tensor)

# Visualize same as before using `original_img`
gradcam.visualize(heatmap, original_img, class_idx)

🎯 Output

You’ll see: - The original image - The Grad-CAM++ attention heatmap - An overlay showing where the model was looking when it predicted the class

🧠 Why This Is Important

  • Gives you insights into what your model is focusing on
  • Improves interpretability and debugging
  • Essential for model explainability in real-world applications

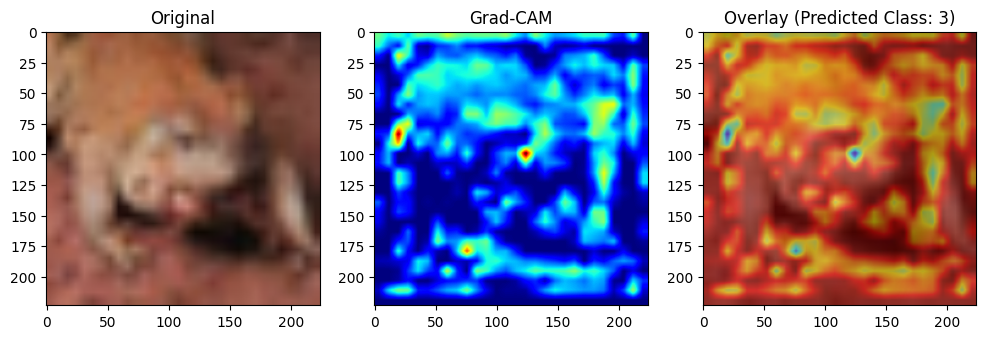

🛠️ Output

output
